Automatic Mechanical Gap Filler (MGF) – A Smart Choice for Safe Boarding and Alighting

The MGF is an essential safety system designed to prevent passenger accidents caused by unavoidable gaps between train doors and station platforms.
Its installation improves accessibility for transportation-vulnerable passengers while ensuring overall passenger safety and stable train operations.

• The structure, basic configuration, and operating principle are as follows:

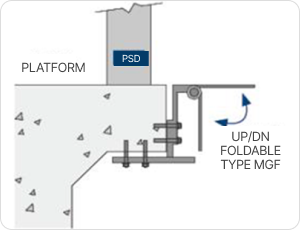

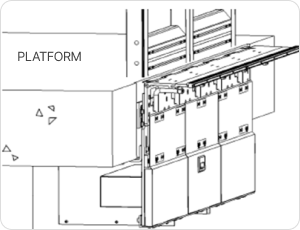

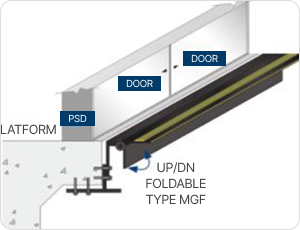

Designed for installation on the platform’s shear plane and lower sections (foldable attachment type), allowing application at any station regardless of whether platform screen doors are installed.

MGF system composition

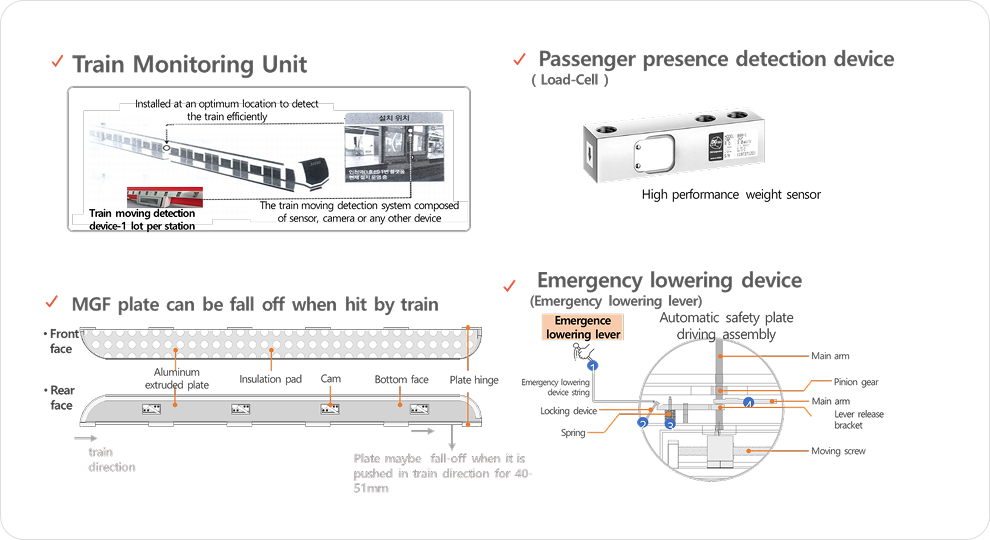

Core Technology

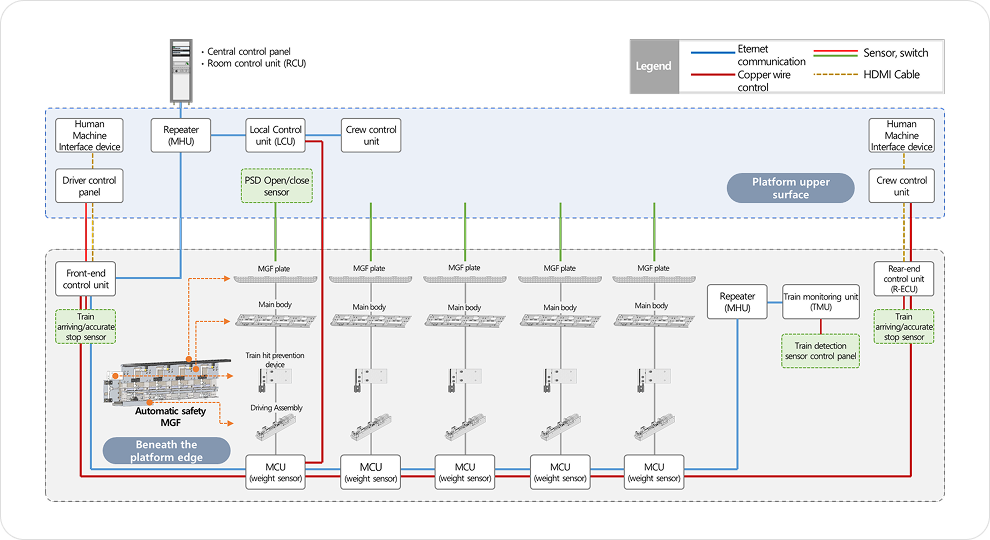

Control System Architecture

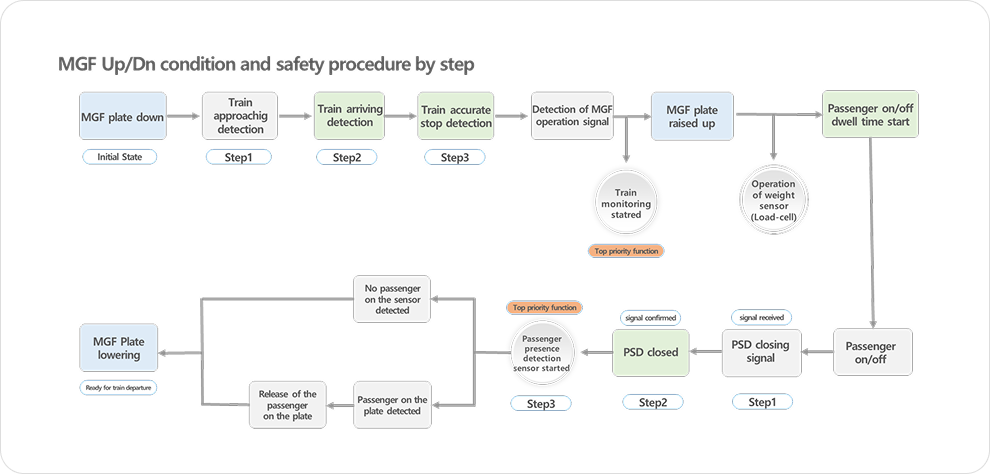

Operation Sequence

Product Excellence

Train Motion Detection and Interlocked Control of MGF

Sensors automatically detect train arrival.
The filler plate automatically unfolds upon train arrival and folds before train departure to prevent interference with the moving train.
The filler plate contarol is interlocked with the train motion detection algorithms to ensure reliable unfold/fold operation of the plate.

High-Precision Sensor System

Obstacle detection sensors (load cells) detect the presence of passengers or objects on the filler plate when lowering the filler plate.
The system automatically stops operation and generates warning alerts when abnormal conditions are detected.

Modular Control System

The control module is standardized to facilitate easy maintenance and replacement.
Independent control of each step allows partial operation in the event of a malfunction.

Highly Reliable Electrical & Electronic Control

Redundancy and safety design prevents operation malfunctions.
An integrated safety system automatically detects control signal errors and performs an emergency stop.

Compatibility with Diverse trains

Although the MGF is fixed to the platform, compatibility with various train lengths and door configurations is achieved.
Flexible customization is available to meet the specific requirements of each stations and lines.

Real-time Monitoring & Remote Control

Integrated with centralized control systems for real-time MGF status monitoring, remote manual operation, and system diagnostics (IoT-expandable).

Emergency Response Capabilities

Power back up by UPS enables manual deployment and retraction during power outages, fires, or emergency stop situations.

Product Certification Status

· Products for disaster prevention, preparedness, response, and recovery activities

· Products designed to protect human life, physical safety, and property from disasters and various accidents

· Products proven to reduce disaster damage and enhance public safety through widespread utilization

· Obtained SIL3 Certification in full compliance with international standards IEC 61508 and EN 50126/50128/50129

· SIL 3 certification is essential for systems requiring an extremely high level of safety, including railway control and emergency stop systems

· Fully compliant with international railway export requirements

· Verified system error probability of 10⁻⁷ to 10⁻⁸ or less.

· Officially recognized as a highly reliable safety control system

· RAMS certification system providing a comprehensive evaluation of four key elements of Reliability, Availability, Maintainability and Safety

· Priliminary essessed in accordance with EN 50126, EN 50128, and EN 50129 standards

· Minimizes risks and potential failures during long-term operation of critical systems in high-risk industries, including railways, aerospace, and nuclear power

· Enables maintenance cost forecasting and life cycle cost (LCC) optimization
